How to enable email service

SMTP Server Configuration

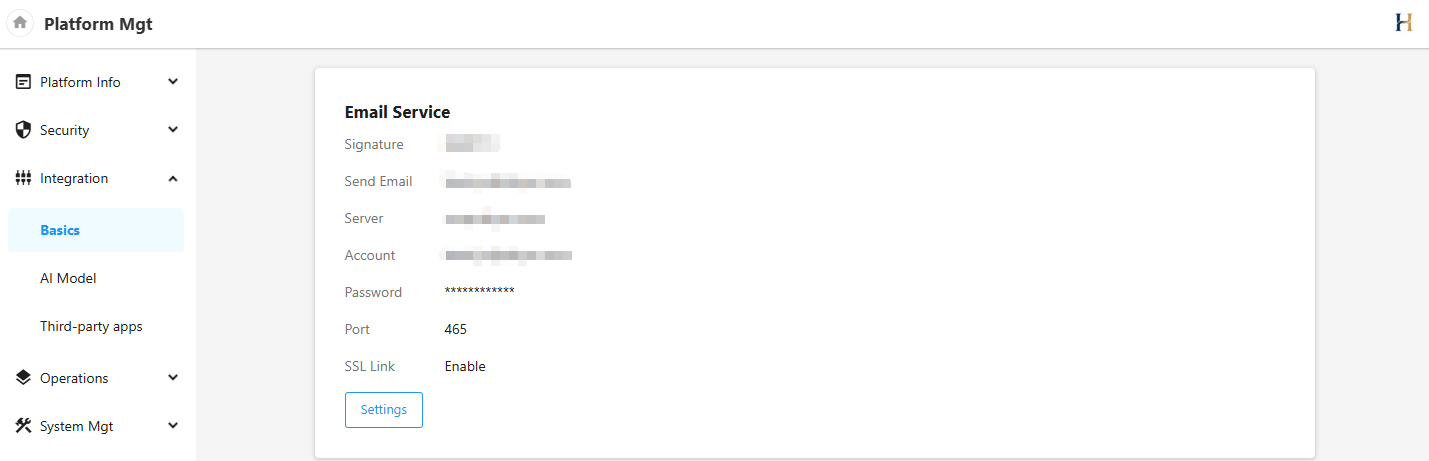

Click the profile photo and go to Platform Mgt > Service Integration > Email Service:

Configuration for Common SMTP Server

Note: If using port 25, some servers may require unblocking port 25.

Tencent Exmail

The administrator needs to enable POP/SMTP/IMAP for configuring email sending. For more details, visit https://work.weixin.qq.com/help?person_id=1&doc_id=277&helpType=exmail.

Use the Exmail account and password to configure the email service. The email and account should be the same.

Server	Port (non-SSL)	Port (SSL)
smtp.exmail.qq.com	25 or 587	465

Alibaba Cloud Exmail

The administrator needs to enable POP/SMTP/IMAP for configuring email sending.

Use the Exmail account and password to configure the email service. The email and account should be the same.

Server	Port (non-SSL)	Port (SSL)
smtp.mxhichina.com	25 or 587	465

Alibaba Cloud Mail

Enable POP/SMTP/IMAP for configuring email sending.

Use the email account and password to configure the email service. The email and account should be the same.

Server	Port (non-SSL)	Port (SSL)
smtp.aliyun.com	25	465

Tencent QQ Mail

Enable POP/SMTP/IMAP for configuring email sending.

Use the email account and authorization code (not email password). to configure the email service. The email and account should be the same.

Server	Port (non-SSL)	Port (SSL)
smtp.qq.com	25 or 587	465

189 Mail

Enable POP/SMTP/IMAP for configuring email sending.

Use the email account and password to configure the email service. The email and account should be the same.

Server	Port (non-SSL)	Port (SSL)
smtp.189.cn	25 or 587	465

163 Mail

Enable POP/SMTP/IMAP for configuring email sending.

Use the email account (only the part before "@") and authorization code (not email password). to configure the email service. The email and account should be the same.

Server	Port (non-SSL)	Port (SSL)
smtp.163.com	25	465

If the email sending fails, please check the connectivity using the following commands.

docker exec -it $(docker ps | grep -E 'hap-community|hap:' | awk '{print $1}') bash -c 'nc -vz server port'

Self Integration

Additionally, it supports configuring a Webhook URL to receive emails and then implement email sending independently.

1. Create a configuration file appextensions.json

   For example: /data/hap/script/volume/email/appextensions.json:

   {
     "WebhookUrl": "https://api.yourdomain.com/email/webhook",
     "WebhookHeaders": {}
   }

   Configuration Parameters:

   • WebhookUrl: Required, the API endpoint for receiving email messages.
   • WebhookHeaders: Optional, custom request headers for authentication and other purposes.

2. Message Body Specification

   HAP sends JSON data to WebhookUrl via POST with application/json format. The message body format is as follows:

   {
     "ToEmails": ["email1","email2"],
     "ReplyToEmails": ["email1","email2"],
     "CcEmails": ["email1","email2"],
     "BccEmails": ["email1","email2"],
     "Signature": "Signature",
     "Subject": "Email Subject",
     "Body": "Email Body",
     "Attachments": { "Attachment Name 1": "Download Link 1", "Attachment Name 2": "Download Link 2" }
   }

   Field Descriptions:

   • ToEmails: List of recipient emails
   • ReplyToEmails: List of emails to reply to by default
   • CcEmails: List of CC emails
   • BccEmails: List of BCC emails
   • Signature: Sender's name
   • Body: Content in HTML format
   • Attachments: Mapping of attachment names to download URLs

3. Mount the configuration file appextensions.json to the microservice container at /usr/local/MDPrivateDeployment/email/appextensions.json.

   Add the following to the docker-compose.yaml file under the app service's volumes:

   - ./volume/email/appextensions.json:/usr/local/MDPrivateDeployment/email/appextensions.json

4. Restart the service
